American Smart

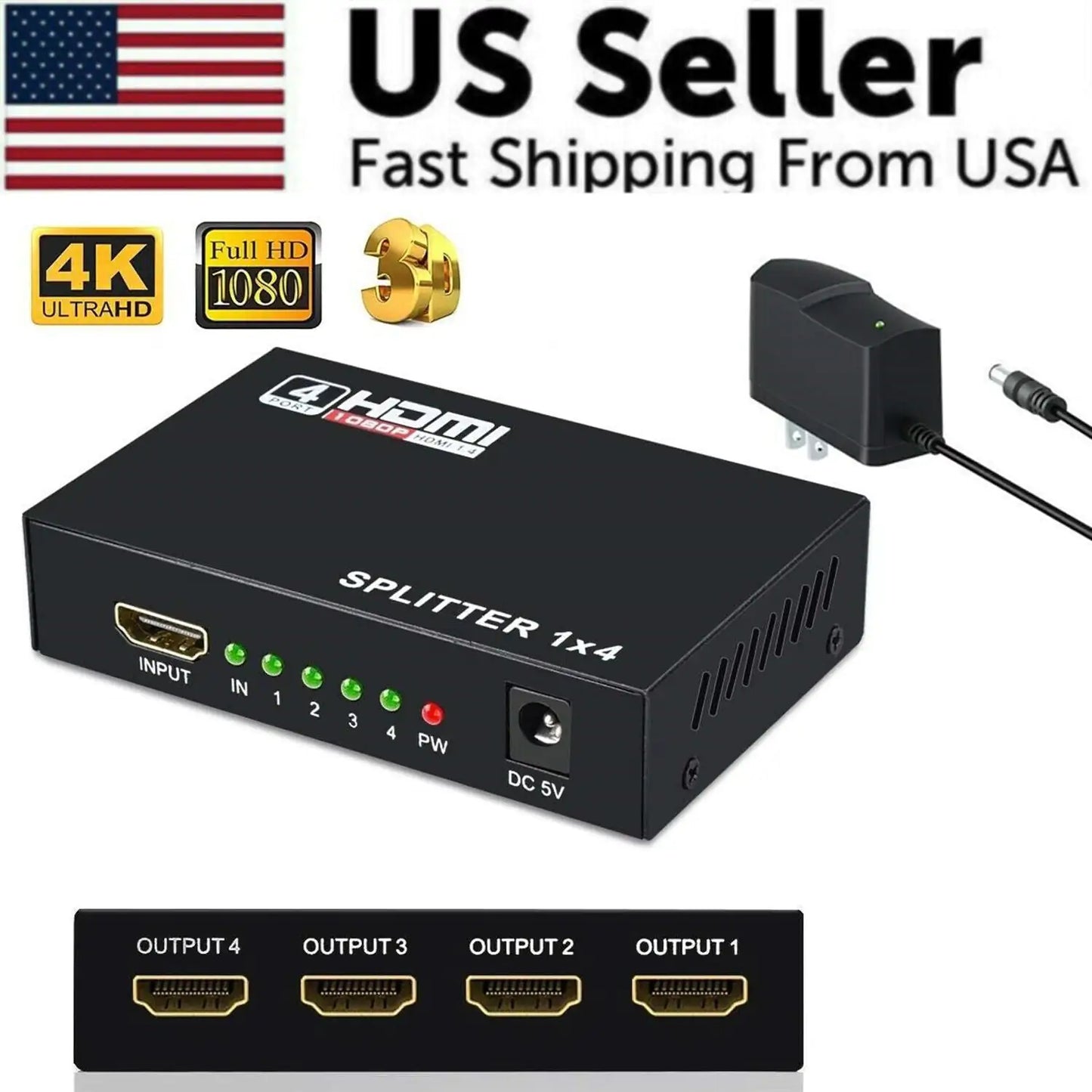

4 Port HDMI 4K Hub Multi Splitter & Amplifier For 3D HDTV 1080P 1X4 1 In 4 Out

4 Port HDMI 4K Hub Multi Splitter & Amplifier For 3D HDTV 1080P 1X4 1 In 4 Out

Regular price $34.35 USD
Regular price Sale price $34.35 USD
Sale Sold out
Shipping calculated at checkout.



4 Port HDMI 4K Hub Multi Splitter & Amplifier For 3D HDTV 1080P 1X4 1 in 4 out


Product Description:
 This HDMI Amplifier Splitter includes 1 input HDMI port and 4 output HDMI ports. It can distributes the input HDMI signal from HD source devices (such as, STB, PC,DVD, HD-DVD, for PS3, etc.) to four identical output signal simultaneously, more outputs can be created by cascading multiple splitters. and it supports full 3D format and the maximum resolution up to 1080p.Its video amplifier bandwidth can be up to 225MHz.This HDMI Amplifier Splitter is perfectly compatible with HDTV,Monitor or Projector, etc. It's widely applied to conference room, education, training, corporation showroom and home theater, etc.

Product Features:
1. 100% brand new and high quality guaranteed.
2. Distributes HDMI input into four identical outputs, all four outputs are synchronized.
3. Support 120HZ 3D projection conversion (If your devices support 3D).
4. Support compressed and uncompressed digital audio formats including DTS-HD , Dolby True HD and LPCM7.1.
5. Compatible with Playstation, Xbox, Wii Consoles, Blu-Ray, satellite boxes, TV Box, laptops, computer.
6. Achieve long distance transmission of HDMI signal of more than 15 meters.
7. Supports HDCP, 8bit per channel (24bit all channel) deep color.
8. Cascaded: Large distribution achieved by cascading more HDMI amplifier splitter.
9. Support high-definition video, high-quality, clear, up to 1080p HDTV resolution.
10. Having signal buffering, amplification.
11. Easy to use, takes only seconds to install.

Product Specifications:
1. Device Type: 1x4 port HDMI Splitter
2. Input Video Signal: 0.5-1.0 volts p-p
3. Input DDC Signal: 5 volts p-P(TTL)
4. Max Signal Link Range: 1920x1200 1080p, 3D 1080p / 24Hz
5. HDMI Resolution: 480i / 576i / 480P / 576P / 720P / 1080i / 1080P
6. DVI Resolution: 480P / 576i / 576P / 720P / 1080i / 1080P / 24Hz
7. HDMI Version: HDMI 1.4, 3D
8. Ports: HDMI Standard (Female)
9. Power supply: DC 5V/2A (100V - 240V AC/DC Power Adapter included)
10. Bandwidth: up to 225MHz
11. EDID Duration: 4 seconds
12. Output Video: HDMI 1.4V + HDCP1.0/1.1/1.2/1.2a/1.4
13. Operating Temperature Range: -5 ~ +35℃
14. Operating Humidity Range: 5-90% RH
15. Dimensions: Approx.9.4 * 6 * 2.1cm / 3.70 * 2.36 * 0.83in
16. Weight: 266g / 9.38 oz
17. Color: Black

Package Include:
1 x 4 Port HDMI Splitter
1 x 5V DC Power Supply
1 x User’s Manual


Extra Information:

Generic Case Cover Protect your device with our premium case.

This accessory provides protection by preventing the device from dust and unnecessary scratches.

It is made to fit perfect and gives the device its maximum protection.

The high quality material is reinforced from the front edges, sides and back to prolong the life of the case.

Besides its protection, it also has openings precisely made for the top and side buttons, charger port/dock connector, headset jack and speaker which allows you full access to all the functions on your device.

Easy to install and last for a long time, our premium cases will help keep your device safe.


  • Save MONEY and your PHONE by using the best replacement part available.
  • This Assembly ships with a protective, along with a protective plastic to prevent any scratches.
  • This item is very carefully packaged
